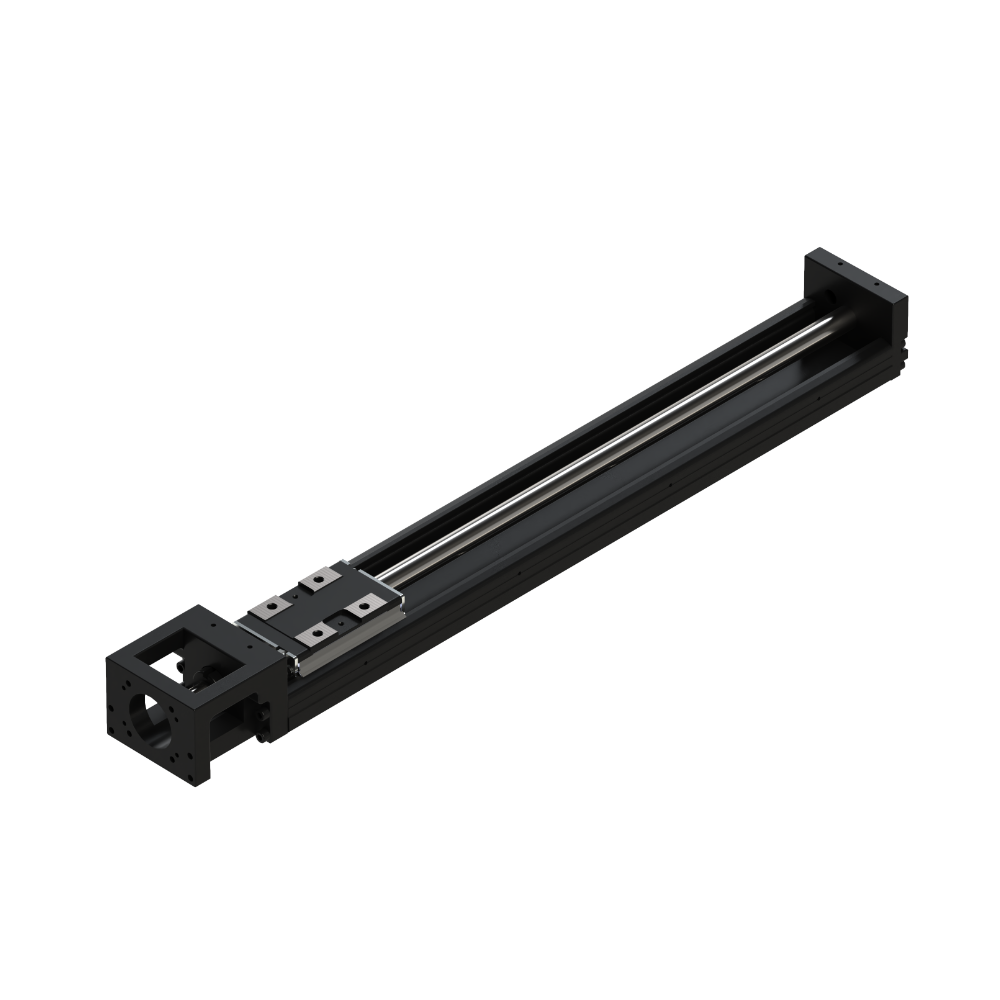

Linear unit KT6005C-400A1-F0B

Toco KT60 -series linear unit:

• Ball screw lead 5mm
• Stroke 234mm (Product with preinstalled bellows, deducts 76mm of stroke)
• Total length 470mm
• Width 60mm
• Weight 3kg
• Max. speed 390mm/s
• Repeatability ±0,01mm
• Equivalent to Hiwin KK60

Download the 3D -model and fit to your design.
